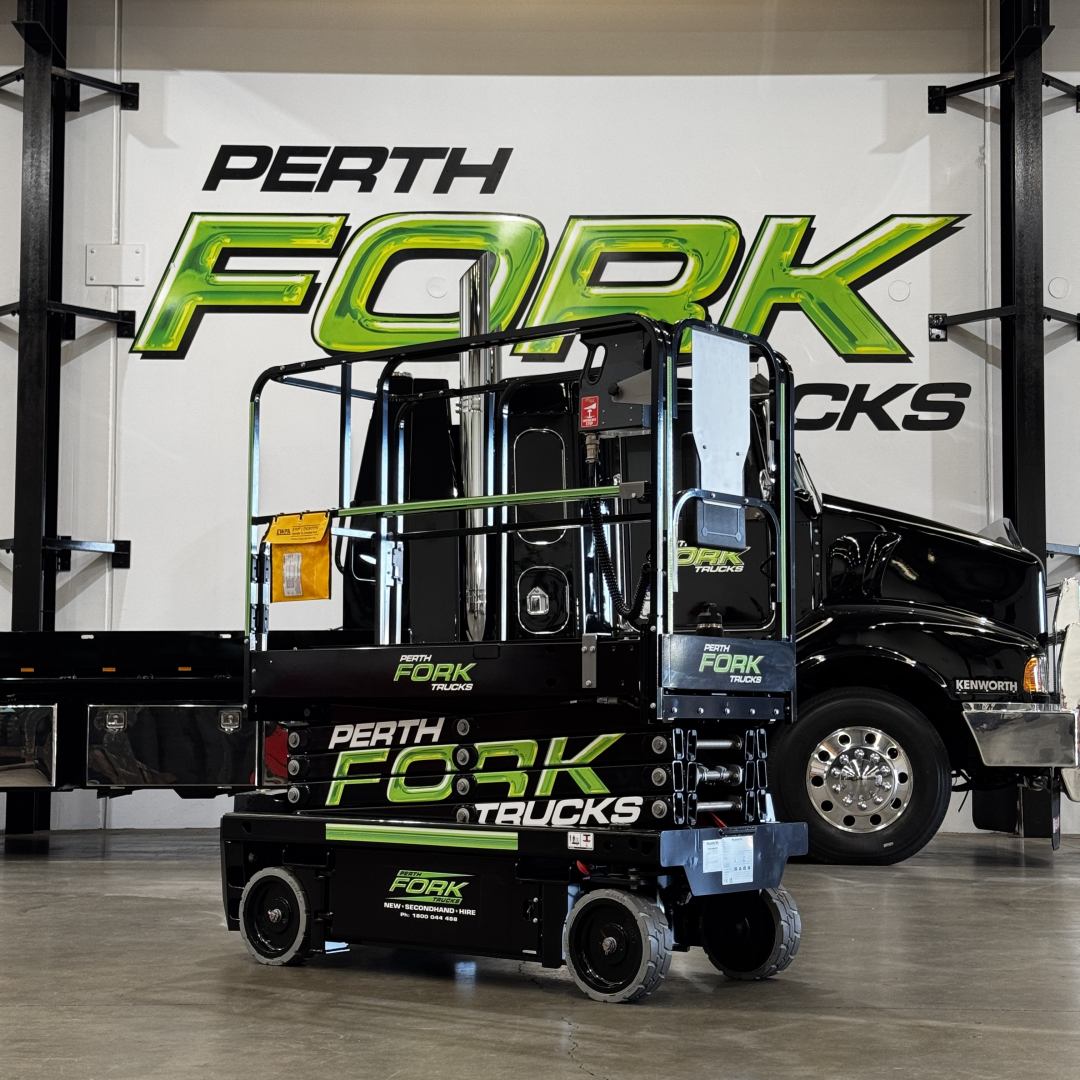

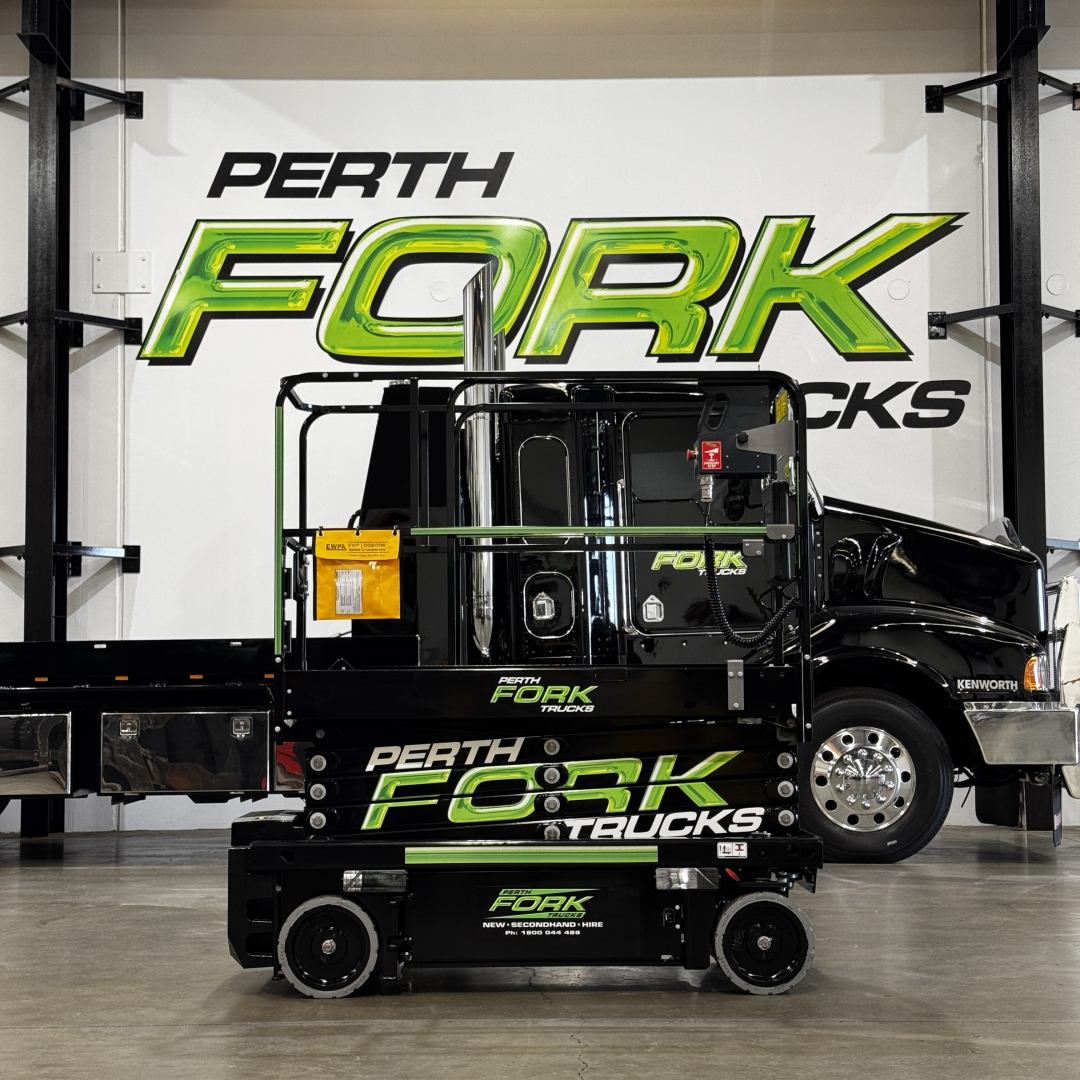

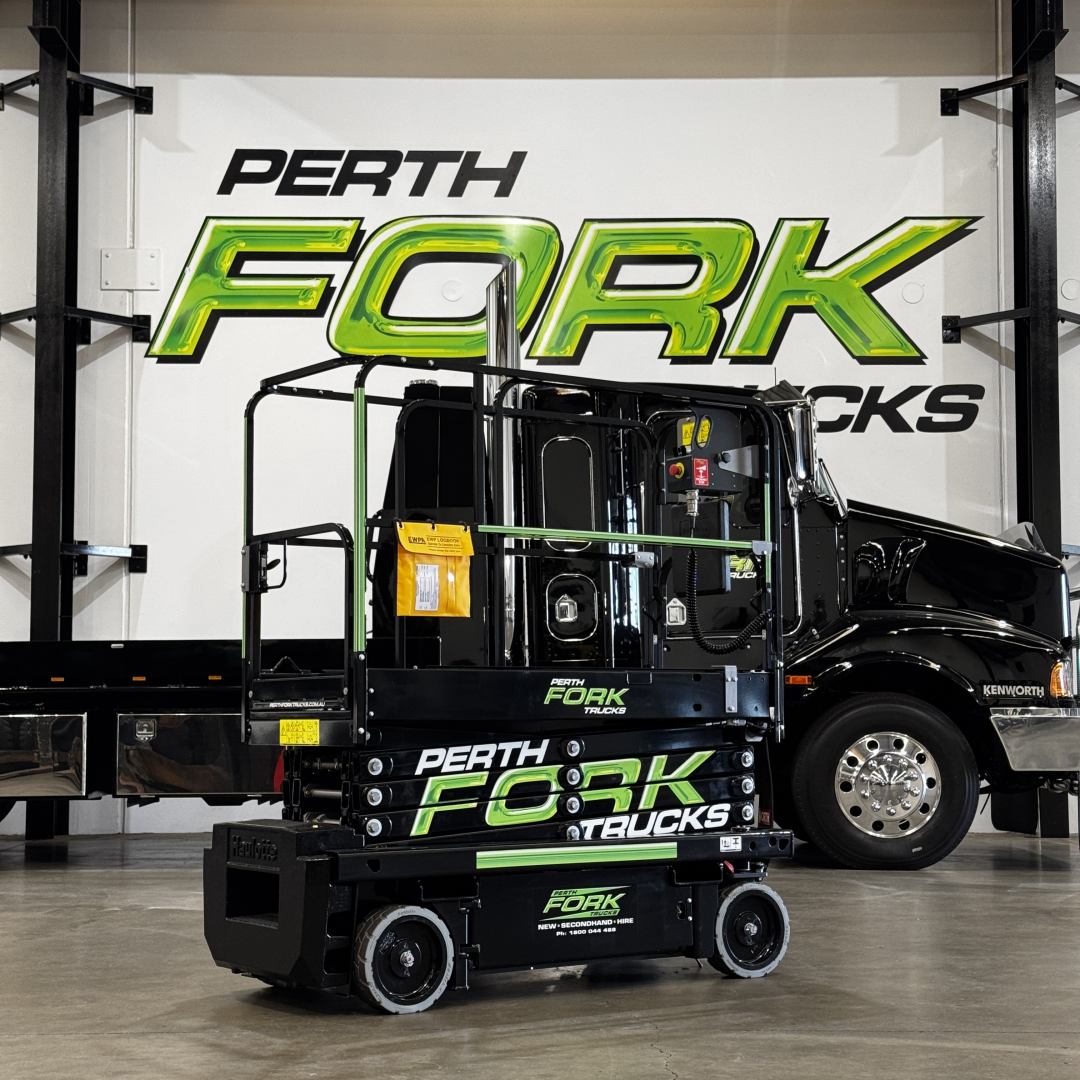

Haulotte 8M Scissor Lift

Haulotte 8M Scissor Lift

- Indoor/Outdoor
- Flat Even Ground Only

Specifications
- Working height: 7.77 m
- Platform height: 5.77 m
- Max. drive working height: 5.77 m
- Lift capacity - inside: 230 kg (2 pers.)
- Lift capacity - outside: 230 kg (1 pers.)
- Lift capacity on the extension deck: 120 kg
-Platform length - outside: 1.72 m
- Platform length - extended: 2.59 m
- Length - extension: 0.86 m
- Platform width - outside: 0.74 m
- Platform size - extended: 2.59 x 0.74 m
- Height - stowed: 1.98 m
- Overall width: 0.79 m
- Length: 1.9 m
- Wheelbase: 1.38 m
- Ground clearance - center: 8.7 cm
- Ground clearance - deployed potholes: 2 cm
- Drive speed: 0.5 - 5 km/h
- Gradeability: 25 %
- Tilt: 1.5° / 3°
- Turning radius - outside: 1.5 m
- Non-marking tyres: 12.5 x 4.13
- Batteries: 24 V - 225 Ah
- Weight: 1,590 kg
